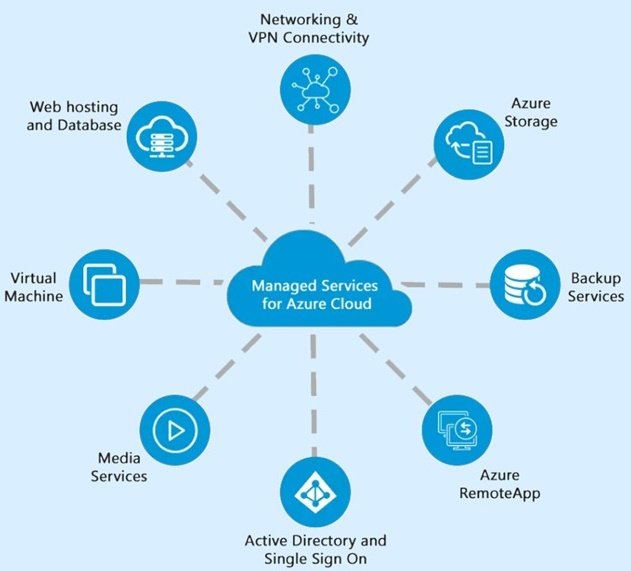

Azure Networking Services form the foundation for connecting and securing cloud resources, enabling communication between VMs, AKS clusters, storage, and on-premises systems within a logically isolated environment.
These services span connectivity, load balancing, hybrid links, and security, powered by Microsoft's global backbone with low-latency peering across 100+ regions. They integrate seamlessly with prior guides on VMs, AKS, AD, DevOps, and Storage for end-to-end infrastructure.
For cloud security pros in India managing SEO workloads or UAE e-commerce, they ensure compliant, low-latency traffic flows.
Core Networking Foundation Services
Virtual Network (VNet) creates private, isolated spaces for resources like VMs and AKS nodes, with subnets for segmentation and IP address ranges (CIDR).
Private Link connects PaaS services privately without public internet; Azure DNS handles domain resolution; Bastion provides secure RDP/SSH without public IPs. Route Server centralizes routing; NAT Gateway manages outbound traffic.
Traffic Manager routes globally based on latency or geography.
Load Balancing and Traffic Distribution
Load Balancer offers Layer 4 (TCP/UDP) balancing across VMs or Availability Sets, with Standard SKU for zone redundancy up to 1M flows.
Application Gateway (Layer 7) handles HTTP/HTTPS with WAF, URL routing, and autoscaling; Azure Front Door adds global CDN, WAF, and anycast routing for <10ms latency worldwide.
Ideal for scaling web apps from DevOps pipelines to AKS ingress.
Hybrid Connectivity Options
VPN Gateway enables encrypted site-to-site or point-to-site tunnels over the public internet, supporting IKEv2 up to 100 Gbps aggregate.
ExpressRoute provides private, dedicated fiber (up to 100 Gbps) bypassing the internet for predictable performance; Virtual WAN unifies hubs for SD-WAN branches, transitive VNet routing, and auto-scaling.
Peering Service optimizes internet peering for SaaS providers.
Network Security Services
Network Security Groups (NSGs) act as stateful firewalls on subnets/NICs, filtering by priority rules (port, IP, protocol). Application Security Groups (ASGs) simplify management via tags.
Azure Firewall offers centralized Layer 7 filtering, IDPS, TLS inspection; DDoS Protection Standard mitigates volumetric attacks (free Basic included). Firewall Manager governs policies across VNets/WAN.
Web Application Firewall (WAF) on Gateway/Front Door blocks OWASP threats.
Virtual Network Architecture Basics
VNets span subscriptions/regions via peering (global/transitive disabled by default). Default routes (0.0.0.0/0) enable internet outbound; user-defined routes (UDRs) override for hubs.
Subnets delegate services (e.g., GatewaySubnet); service endpoints secure PaaS access without gateways.
Key Features for Cloud Infrastructure
Azure Network Watcher diagnoses connectivity (IP flow verify, NSG flows), captures packets, and monitors topology. Virtual Network Manager enforces global policies across fleets.
Private endpoints + DNS integration hide services; DDoS telemetry feeds Sentinel for alerts.
Setting Up a Basic VNet for Developers
In Azure portal: Create VNet > Address space 10.0.0.0/16 > Subnet default 10.0.0.0/24. Deploy VM/AKS into subnet; apply NSG: Allow port 80 inbound.
CLI: az network vnet create -g myRG -n myVNet --address-prefix 10.0.0.0/16 --subnet-name default --subnet-prefix 10.0.1.0/24.
Peer VNets: az network vnet peering create for low-latency cross-subscription links.
Integrating with Azure Services
Attach VNets to AKS for pod networking (Azure CNI); VM NICs auto-join. Storage blobs/files via private endpoints; DevOps agents deploy IaC to peered VNets secured by AD RBAC.
Front Door + Blob CDN accelerates SEO content delivery.
Performance and Scalability
Global backbone (SONiC SDN) delivers 99.99% uptime, <50ms inter-region. Scale Load Balancer to 250k rules; Virtual WAN hubs auto-scale to 50 Gbps.
ExpressRoute FastPath bypasses gateways for VMs.
Security Best Practices
Zero-trust: NSGs + Azure AD NSG flow logs; just-in-time VM access via Bastion. Firewall hubs inspect east-west traffic; private clusters for AKS.
Enable DDoS Standard ($2.65/hour + usage); WAF managed rulesets for compliance.
Cost Optimization Strategies
Pay-per-use: NAT Gateway $0.045/GB processed; VPN $0.04/hour + data. Reserve ExpressRoute circuits (up to 48% savings); right-size Gateways via Advisor.
Use the Traffic Manager free tier for DNS routing.
Monitoring and Troubleshooting
Network Watcher topology maps flows; Connection Monitor tests latency/jitter to on-premises. Logs to Storage; alerts on dropped packets.
Fixes: VPN S2S dead peer detection; NSG priority conflicts (lower number first).
Real-World Use Cases
Digital agencies hub VNets for multi-client isolation, Front Door for global SEO sites. Cloud security audits route AKS traffic through the firewall. E-commerce scales UAE traffic via Virtual WAN branches.
Hybrid: ExpressRoute + VM File shares for low-latency content sync.
Future of Azure Networking
Advancing AI-driven routing, confidential networking enclaves, and sustainable carbon-aware peering. Deeper integration with Entra ID for network intents.
Layer these atop Storage/VMs/AKS/DevOps/AD for production-grade infrastructure.
